Picking Lorry

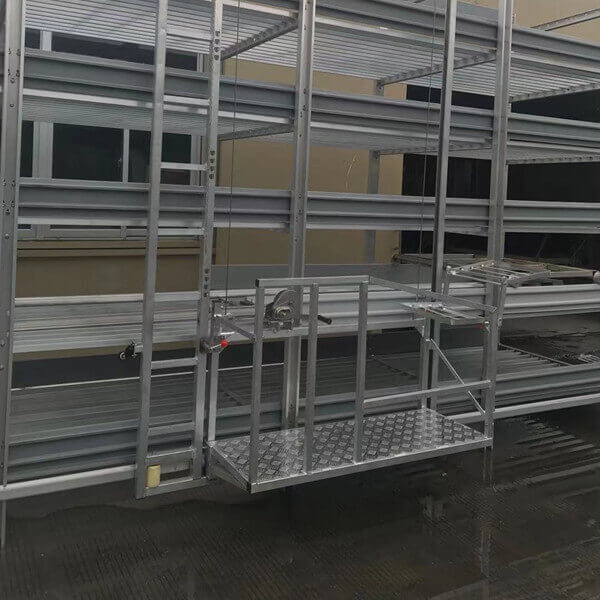

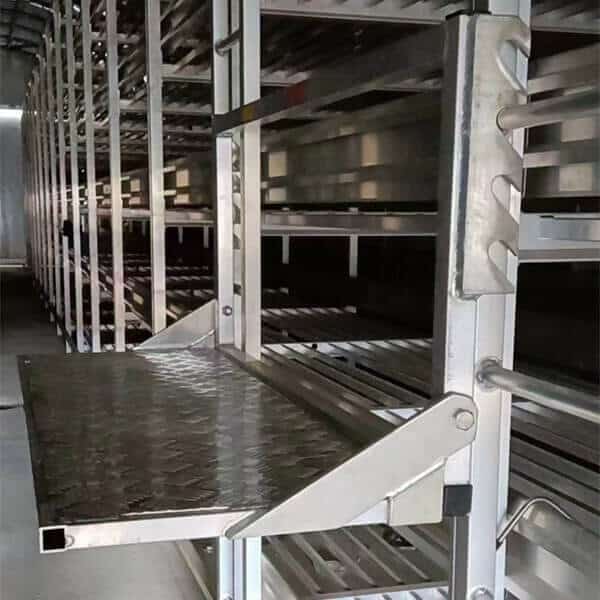

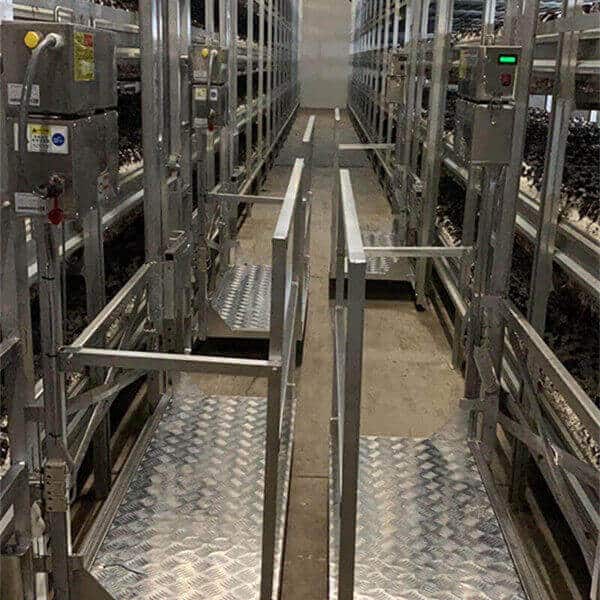

Champignon Mushroom Picking Lorry can be hung on mushroom shelving, going up and down by hand or worm-wheel for picking mushroom on each layer, it moves along the rail by manual pushing. The maximum loading capacity is 150kg. It is equipped with safety protection, anti-slip device to ensure the picker’s safety.

 Parameters

Items Unit SM-CGC01/R/S SM-CGCW01
Dimension mm 3335×1940×550 3335×1940×550
Wire rope specification mm 5 5
Distance between upper and lower rail mm 3150(customized) 3150(customized)
Total weight kg ≈70 ≈75
Maximum loading capacity kg 150 150
Lifting method Manual capstan Lithum battery drive, brushless motor

 Benefits
